Asphalt Batch Mix Plant
Leading Manufaturer & Exporter of Asphalt Batch Mix Plant
ASPHALT BATCH MIX PLANT
KIBMP series OF Krishna Engineers asphalt batch mixing plants are built with customer-focused technology that improves the profitability of your business. The batch plant is ideal when numerous varied mixes are required and accurate proportioning and homogenous blending are needed, too.
High quality mix is delivered with the help of an easy-to-calibrate, rugged, multipoint weighing arrangement. A heavy-duty pug mill mixer and carefully designed, intuitive controls also enable quality.
| Product Code | KIBMP-80 | KIBMP-100 | KIBMP-120 | KIBMP-160 |
|---|---|---|---|---|
| Capacity - TPH | 80 | 100 | 120 | 160 |

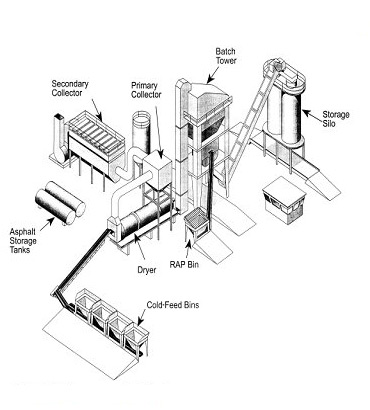

Asphalt Batching Plant Components:
- Cold feed bins
- Primary vibrating screen
- Drying drum with burner
- Hot aggregate bucket elevator
- Pre-separator with bag filter
- Multi-deck vibrating screens
- Mixing unit
- Bitumen storage tanks
- Weighing hoppers
- Filler storage silo/hopper
- Control cabin and panel
Operations:
Feeding the aggregates into the feeder containers is how the operation of asphalt batch mix plant begins. When hot mix asphalt is released into the truck the asphalt batch mix plant operation ends.
- Bolstering unheated-crude aggregates into various receptacles of the cold aggregate feeder is the initial step. This bolstering must be according to their sizes. There are cool feeder gates on individual receptacles which will control the aggregates flow.
- Once the initial step is done with, the aggregates are moved to drying drum. A charging conveyor will move the aggregates to the drum.
- The drying drum heats-dries the aggregates viably as drying drum comes fitted with a burner.
- Most of the hot mix plants are outfitted with a secondary dust collector. It is for settling substantial dust particles.
- There is a primary dust collector that works hand in hand with an auxiliary dust collector. This auxiliary dust collector acts as a bag filter.
- Aggregates are transferred to the tower unite after they are heated in the drum and this transfer of aggregates is done using a bucket lift.
- On top of the tower unit, we have the screening unit. It is multi-layered. Hot aggregates get treated to screening impact as they go through the screens. They will get separated and put away into various receptacles in view of their sizes.
- With separate hot receptacles, it becomes easy to separately store each sort of aggregates.
- Once the aggregates are sorted in different receptacles, aggregates are then weighed. Subsequent to weighing these aggregates will be released into the mixing unit, and then the aggregates will be mixed with bitumen and filler material.
- The purpose of bitumen tanks is to heat and store bitumen, and additionally, bitumen tank is equipped with a pumping station. The pumped bitumen in the weighing hopper measures it before addition into the mixer.
- Hot mix asphalt will be ready to be moved into waiting trucks after all the above stages are done.
- For operating/controlling the asphalt batch plant, a control panel is used.
