Bitumen Pressure Distributor
BITUMEN PRESSURE DISTRIBUTOR

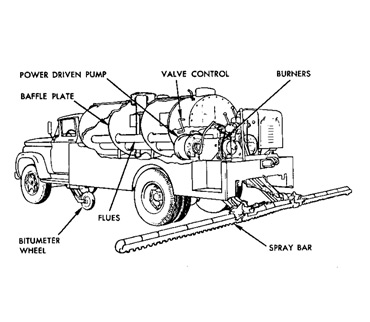

Bitumen Pressure Distributors are offered in a self-propelled and mounted with a variable spray bar and suitable heating system. The trucks are outlined to function on a continuous pressure framework, bitumen pump, tank mounting, auxiliary engine, air compressor and different accessories. In addition, provided Bitumen Pressure Distributor deliver consistent rate usages of cold tar or hot bitumen. The integrated sprayer is available with special pressure cleaning system that enables effective system cleaning. Cleaning is suggested after usage as it does not pet any clogging. Customers can additionally deploy our trucks with bitumen emulsion. Different versions are offered on request when customers need it rather than standard models. This truck comprises of control valve, moisture separator and pressure setting valve for trouble free operation of its spray bar. Control valve of this truck is used to manage its air cylinder that handles functioning of its nozzle spray.
Standard Specification:
- Bitumen Pump: positive displacement gear pump
- Air Compressor: Twin Cylindered, 3HP, 360 LPM Capacity With Working Pressure of 9 Kg/cm2
- Driving Unit: Powered By A 25HP Air Cooled Diesel Engine
- Standard Width: 2.4 M.
- Adjustable Extension Bar For Spraying Width up to 4.2 M.
- Nozzle Distance: 225mm Nozzle c/c.
Advantages:
Krishna Engineers make Bitumen Emulsion Sprayer is available in capacities ranging from 4 tons to 12 tons. There are many advantages of the bitumen pressure distributor by Atlas. Some of the advantages are as below:
- Chassis is designed to fit any suitable truck chassis.
- Can use any new / old truck chassis.
- Diesel engine is strong, proven and ecomonical.
- Spray bar length is customizable.
- The storage tank is thermally insulated from all sides.
- Pressurised cleaning system to clean all the pipelines.
- Hand spray bar is available.
- Spraying is uniform.
- Economical operation.
- Sprayer is factory tested and ready to use.
